Help connecting lines

Etienne Marais
Etienne Marais
21 Aug, 2023 07:48 PM

Hello everyone. I need to know if this lines will be considered connected. It was drawn in different planes. I want to do a FEA on them later and want to know if they will be considered as connected.

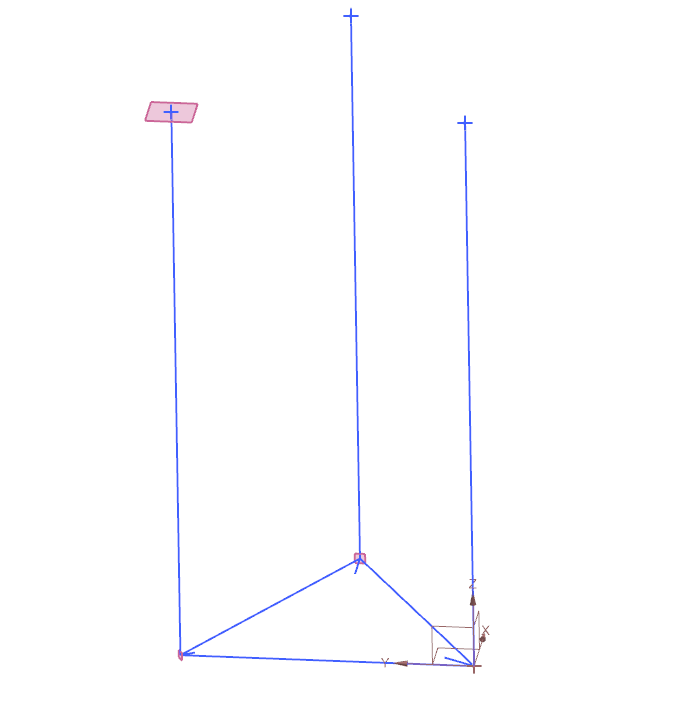

Screenshot 2023-08-21 214209.png Screenshot 2023-08-21 214209.png
