Logitech Mouse design

Furqan aslam

6 Nov, 2020 10:03 AM

Hello guy's

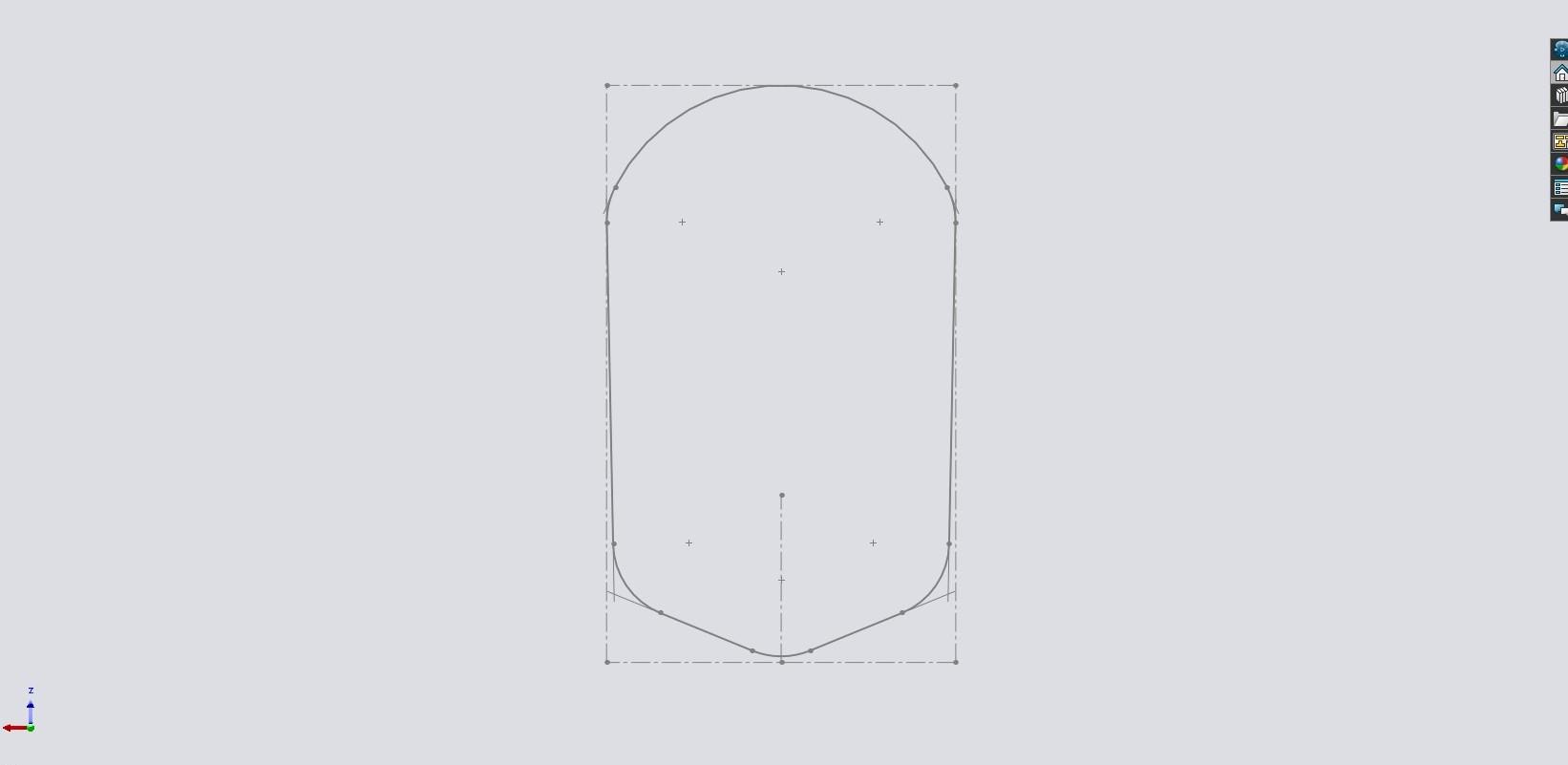

1. Step 1: Make basic sketch on a top plane.

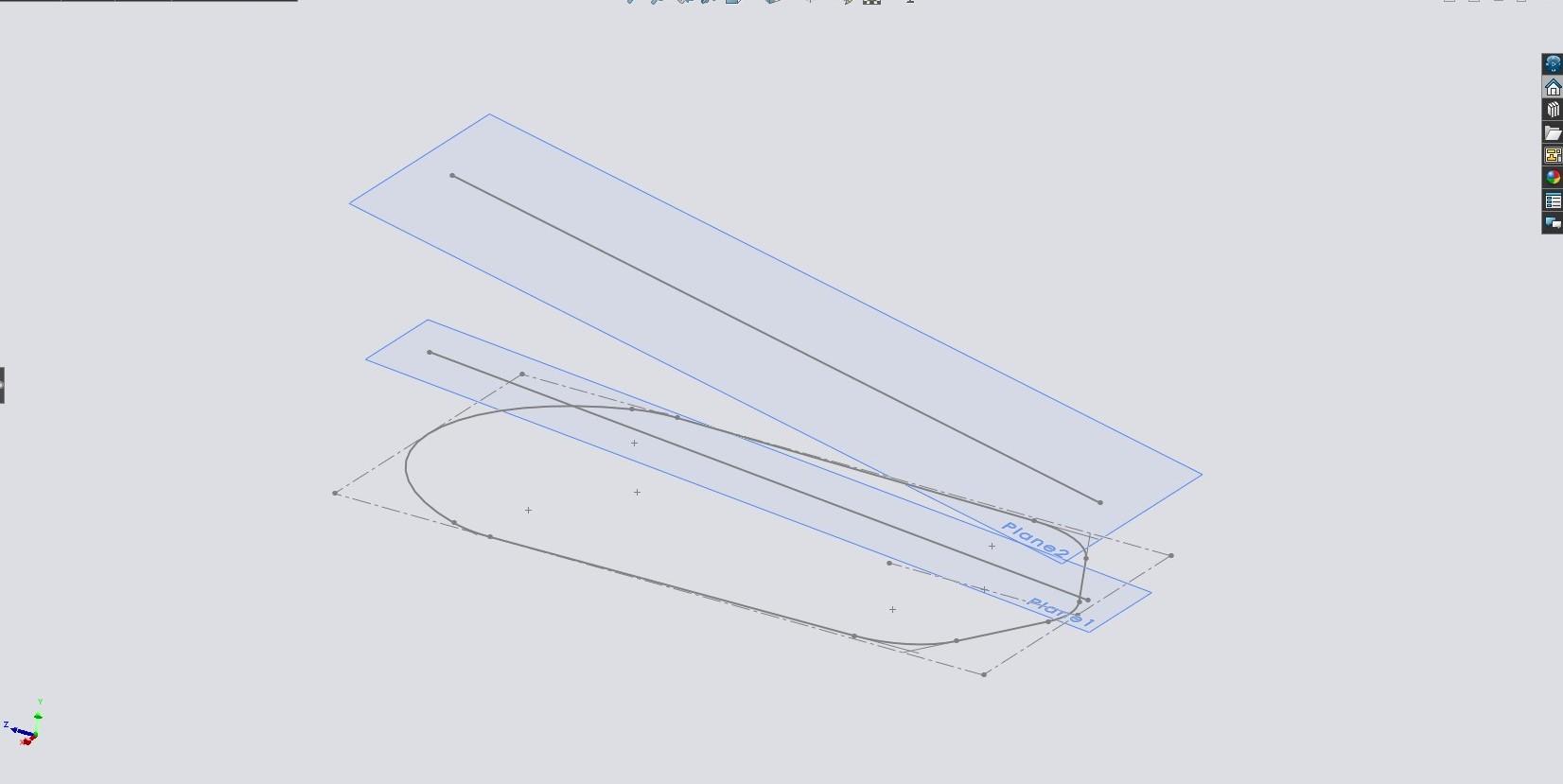

2. Step 2: Make two line on left plane and create plane with line reference.

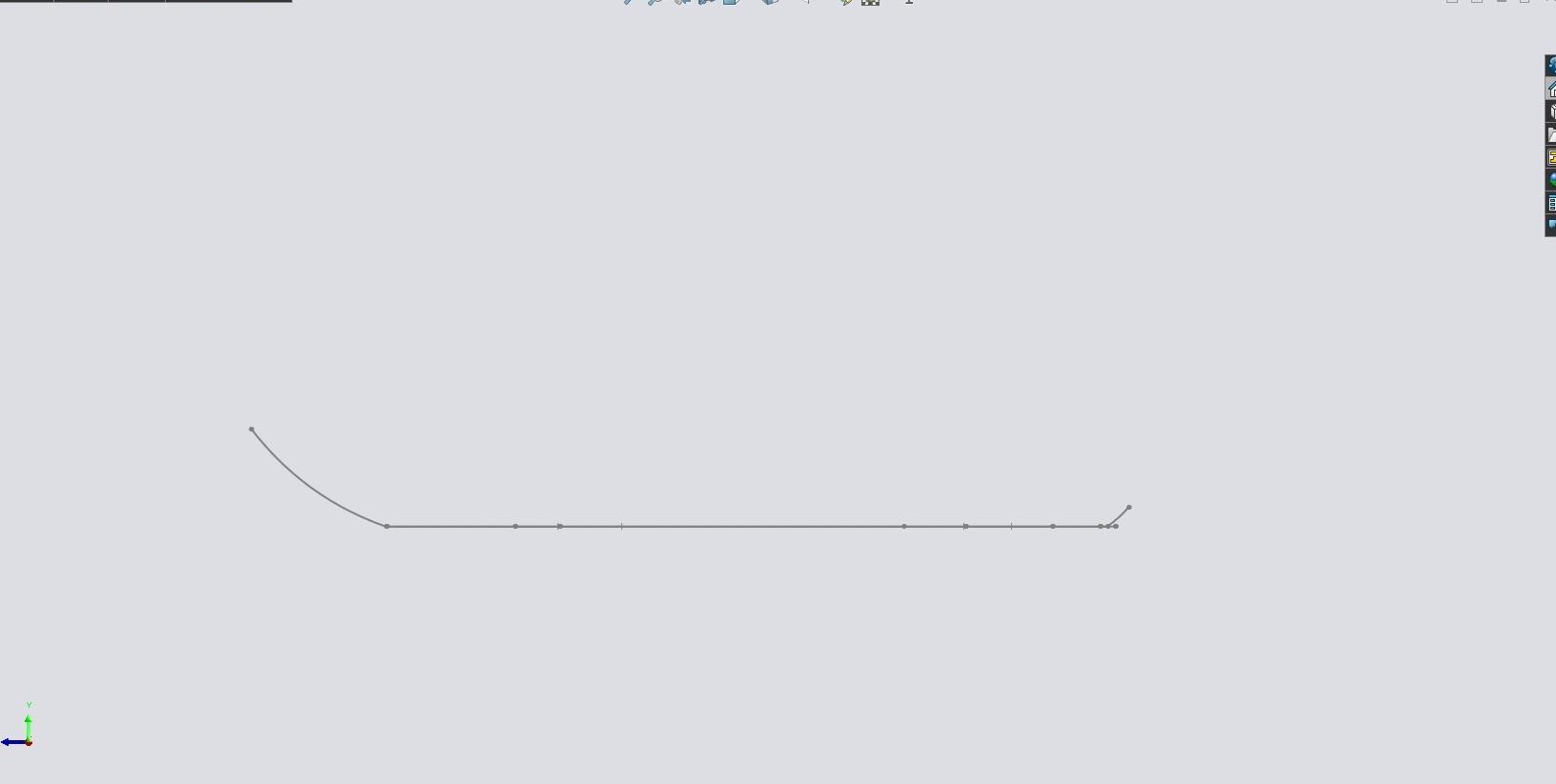

3. Step 3: Create two curve on left plane with the help of base sketch.

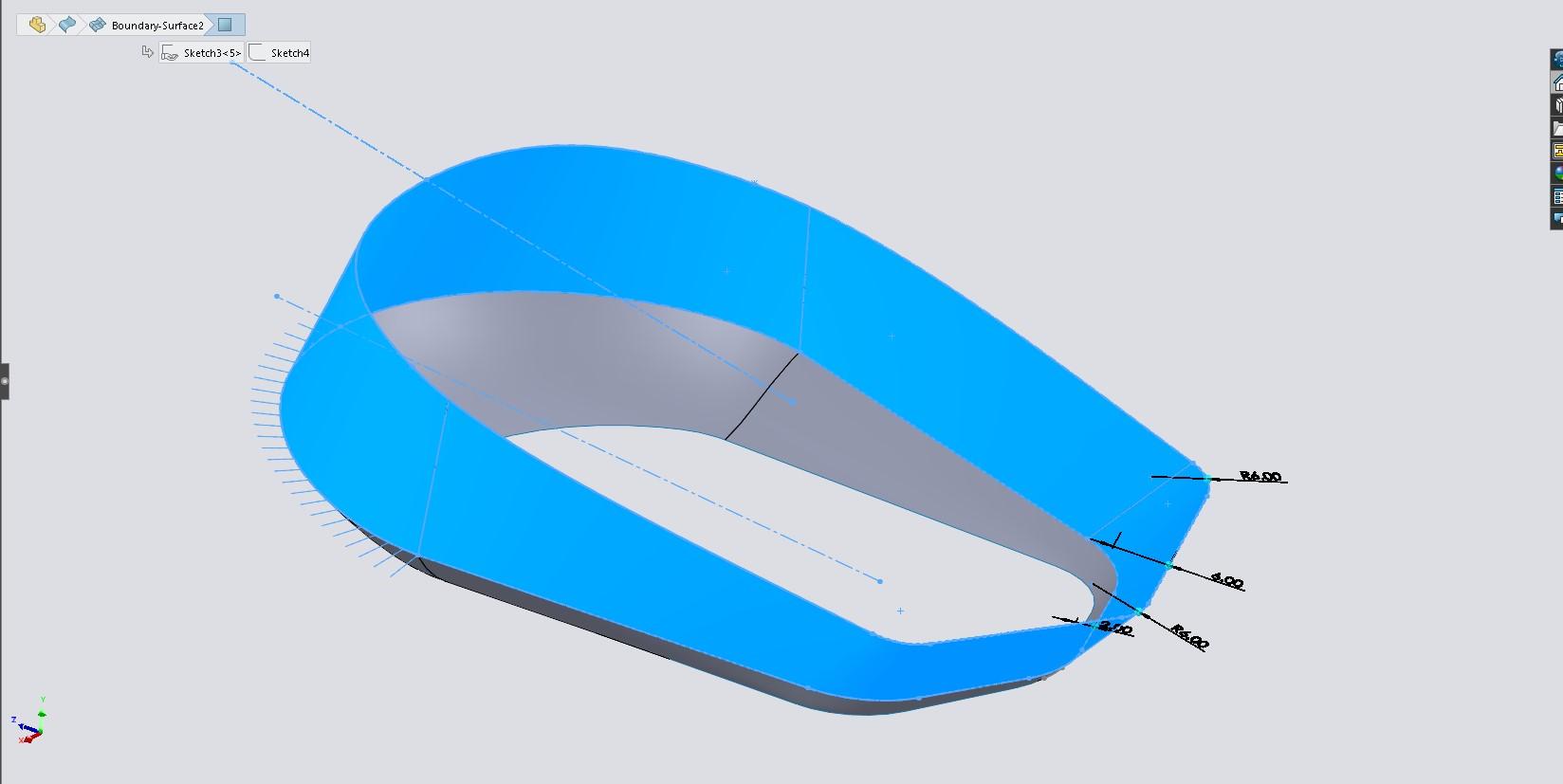

4. Step 4: Now create boundary surface

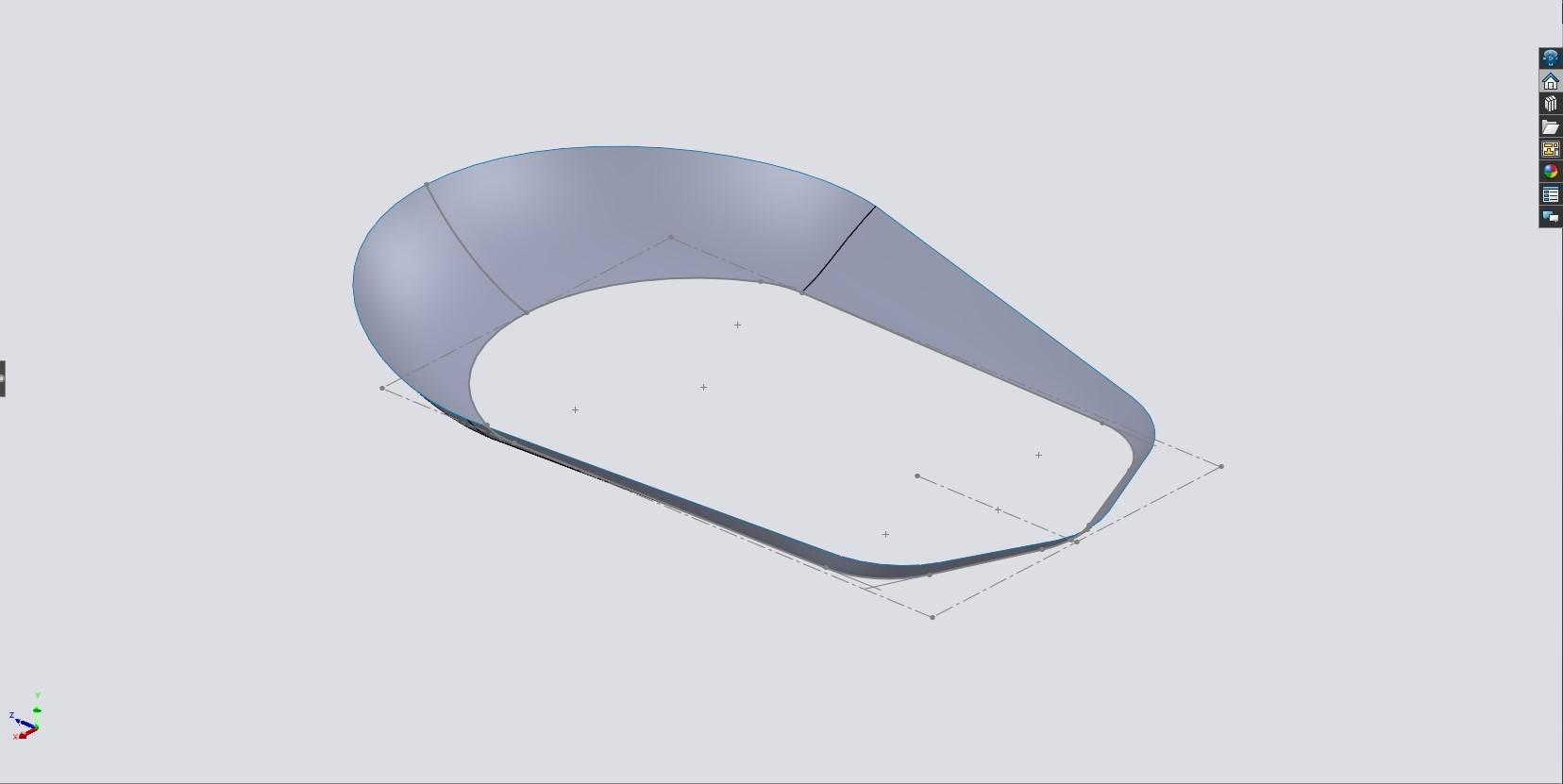

5. Step 5: Create another boundary surface.









6. Step 6: Create top surface









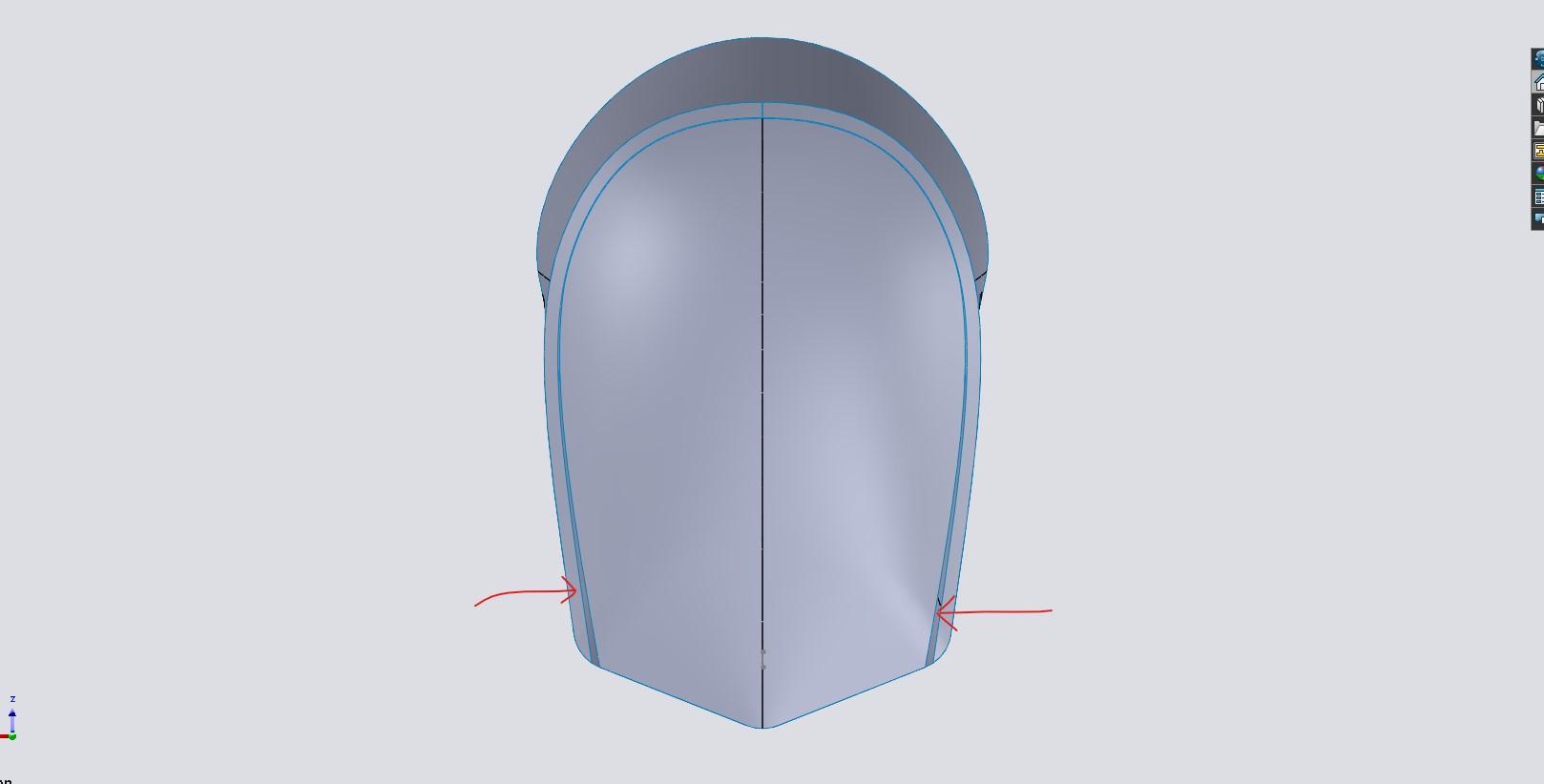

7. Step 7: Feature used like split line and delete face

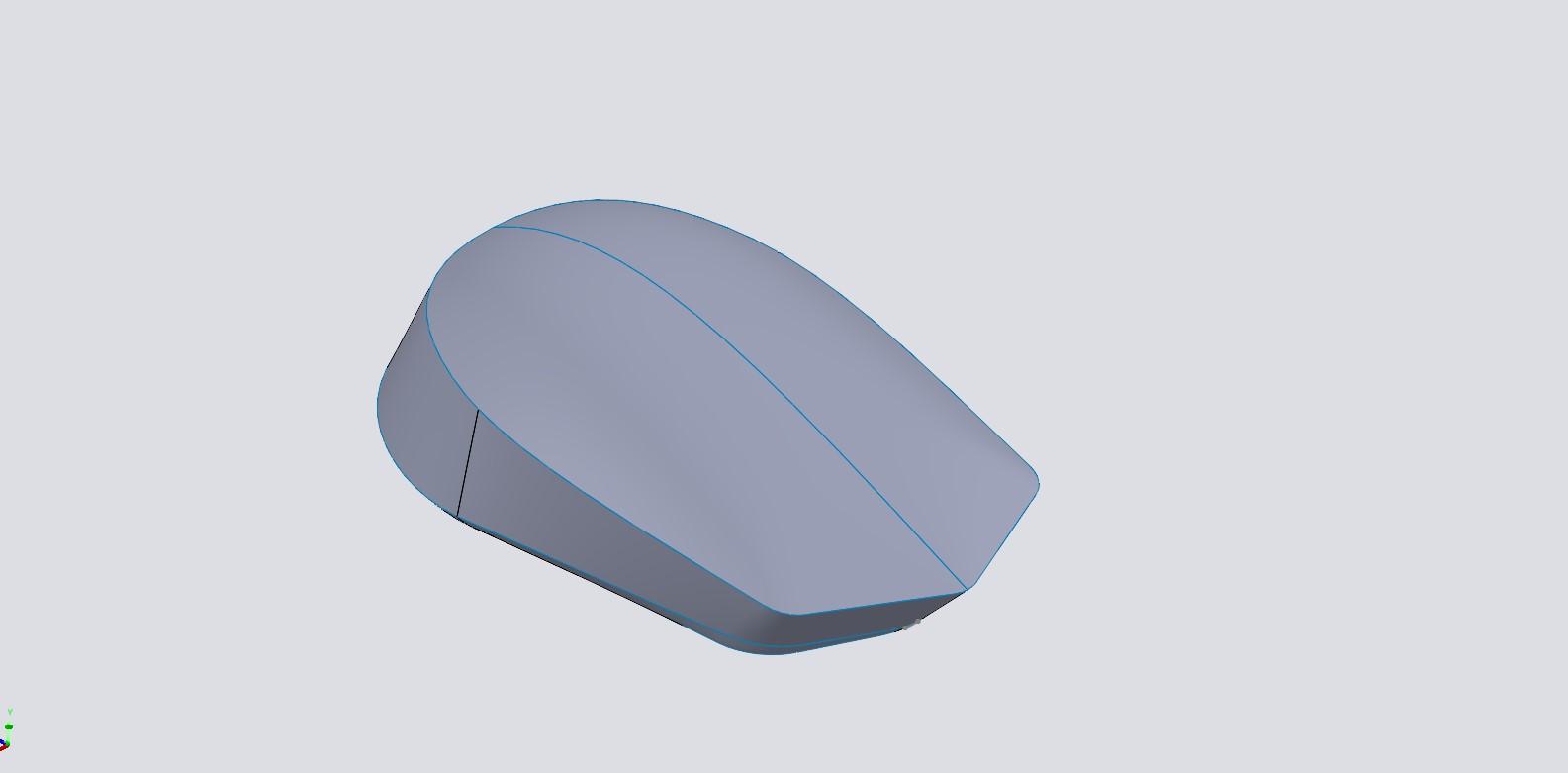

8. Step 8: Done after use some feature like split line, delete face, knife surface and thicken.
